Metal roofing deck rolling machine is designed for making the metal roofing tiles in batch fully automatically.
1.5" B Roof Deck Roll Forming Machine in America market
What is the metal roofing decking ?
Metal roofing decks are available in a variety of types including narrow rib, intermediate rib, wide rib, and deep rib, and are used to support insulation or lightweight concrete and the waterproof membrane of a roof. Our metal roofing deck is used as a foundation for flat steel deck, pitched, and arched roof systems because of their high strength-to-weight ratio of the steel ratio. Metal roof decking products act alone in transferring horizontal and vertical loads into the building frame. These metal roofing deck can be left exposed for open ceiling designs or manufactured with added acoustical perforations. Additionally, metal roofing decks are known to provide a solid work surface for the installation of insulation, weatherproofing, and roofing materials.

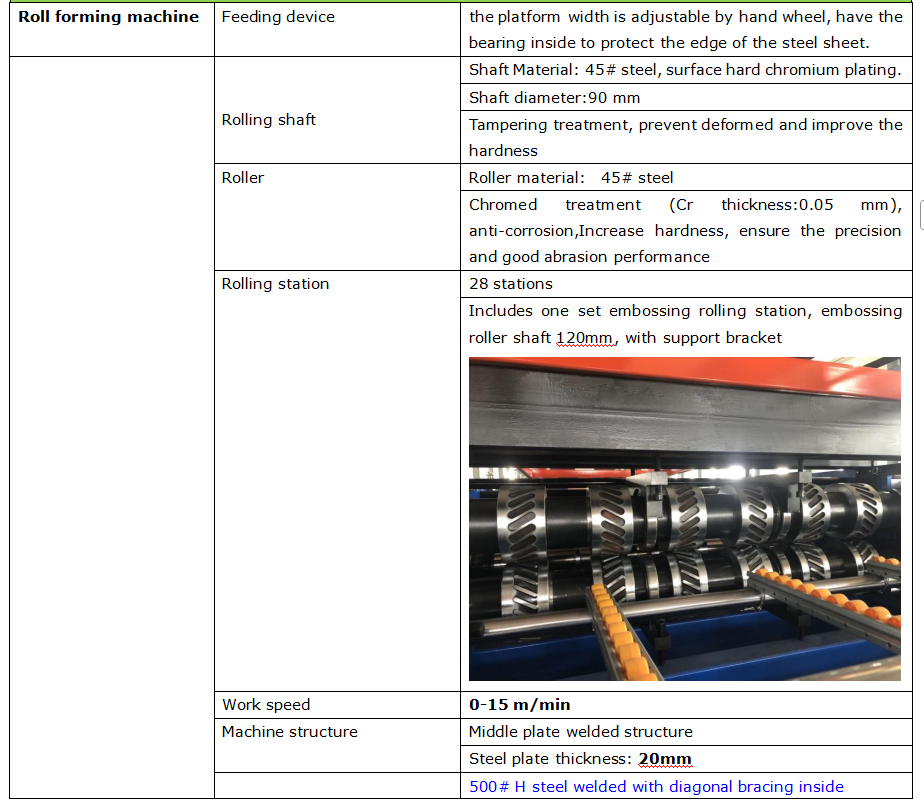

Based on the popular profile,we design the metal roofing decks making machine as following:

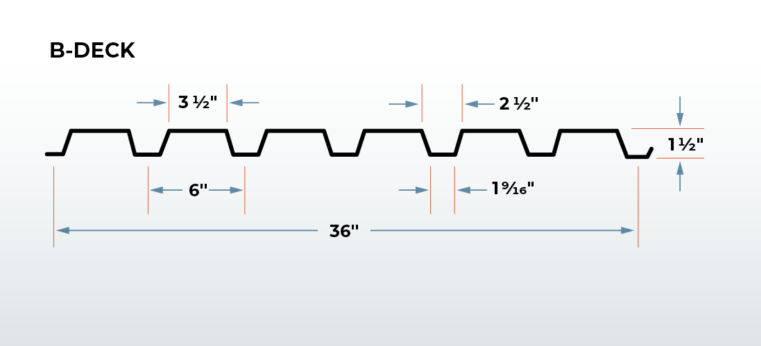

Here is one of popular metal roofing deck drawing profile in USA for your reference, which called 1.5" B Roof Deck Roll Forming Machine:

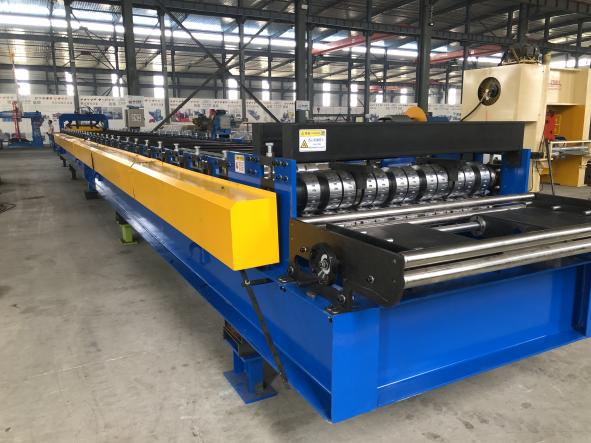

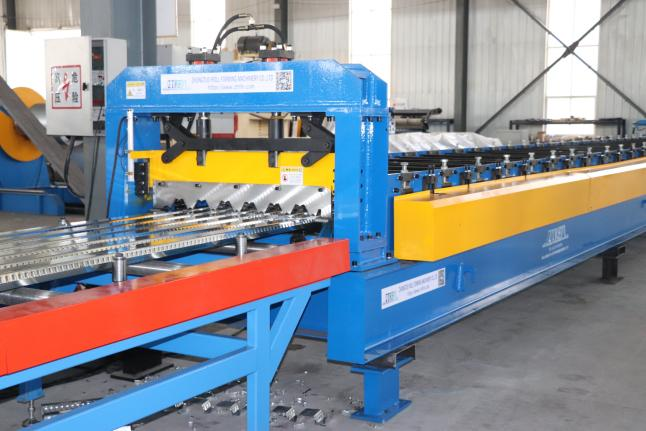

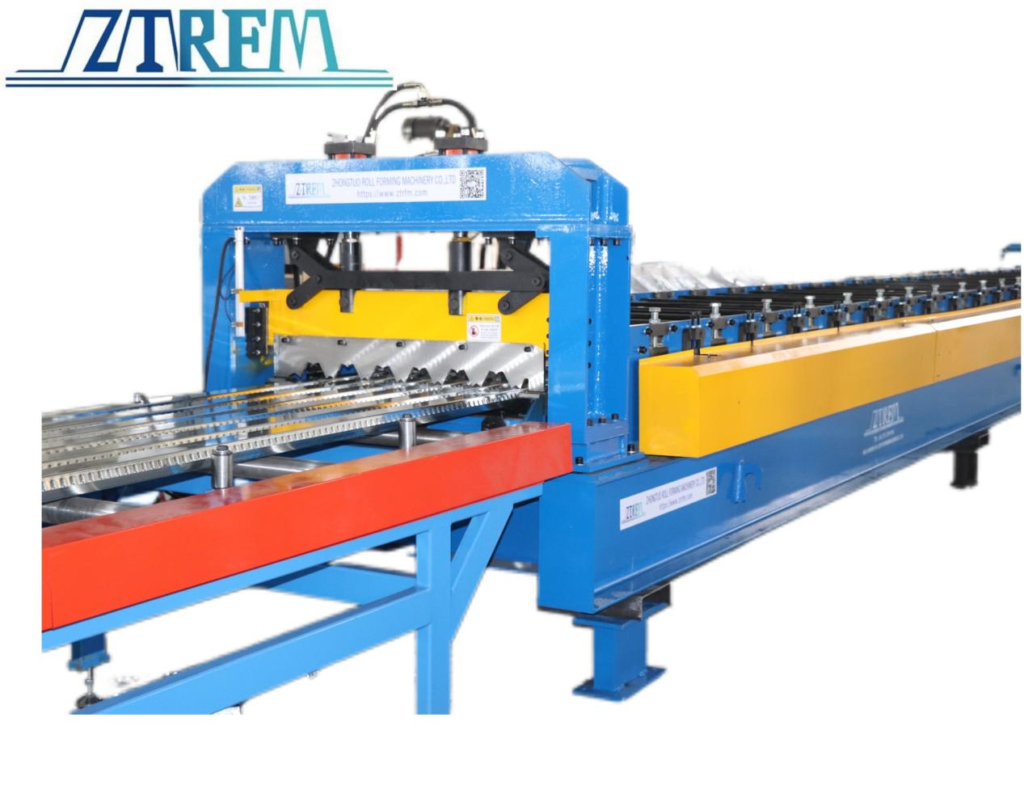

Here are some pictures of our machines to America :
Roof Deck products serve as the structural substrate in roof construction. Installed directly over structural steel it provides a solid work surface for the installation of insulation, weatherproofing, and roofing materials.
These products are also used to build mezzanines and canopies, and the attractive corrugated underside of our Roof Deck can be left exposed for an open ceiling design.
Four popular types including B deck, F deck, N deck, and A deck in a variety of gauges are available. N deck and B deck are also available complete with acoustical perforations and an appropriate sound absorption material for noise attenuation – a perfect choice for gymnasiums, auditoriums, and natatoriums.

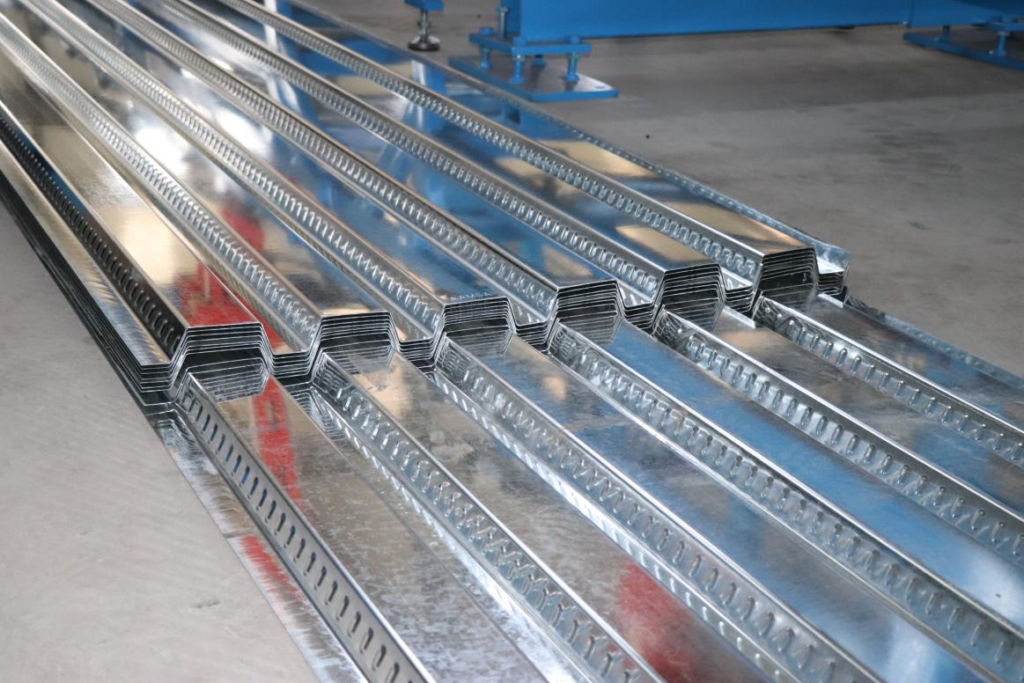

Steel roof decks are the primary structural component of nearly all flat roofs. A deck is a structural panel that spans across the roof joists or purlins to provide a flat surface on which to lay a weatherproof roof. Steel decks are the substrate for most roofing materials, such as built-up roofs, membrane roofs, or insulated steel sheet roof assemblies. Roof decks are also used in more unusual configurations that are sloped or curved. The finished products like this:

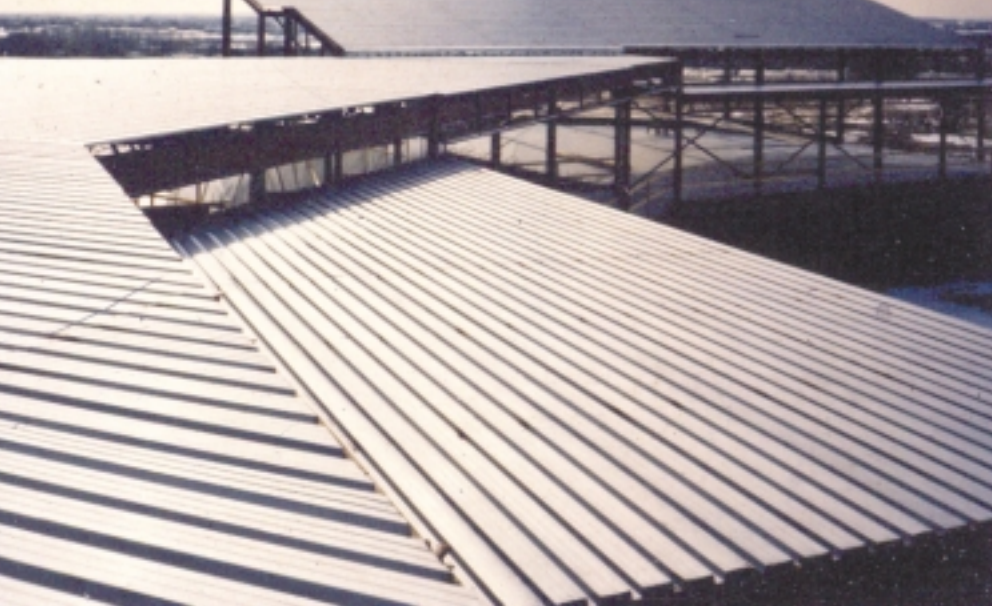

Typical roof deck profile. This type of concrete formwork offers certain advantages in terms of cost and shorter construction time over conventional removable forms. However, in some cases, the deck has no concrete cap and is the only load-bearing element. This type of deck is called a floor slab or non-composite deck. In the 1960s, floor slab products were developed that mechanically interlocked the concrete and steel decks. By interlocking the steel deck and concrete slab, the deck becomes the positive moment reinforcement in the reinforced concrete slab. In addition, the deck acts as a formwork for the concrete.
More info you can check the Youtube Link here:
https://www.youtube.com/watch?v=eoPnw4ZDkKc&t=7s
