Manufacturers of R panel and AG panel machines: Multiple companies manufacture R panel and AG panel machines, and there are many factories in the market but Zhongtuo pay more attention on the quality. These companies offer machines of different models and specifications to meet different production needs.
Machine specifications and functions drawing profiles:

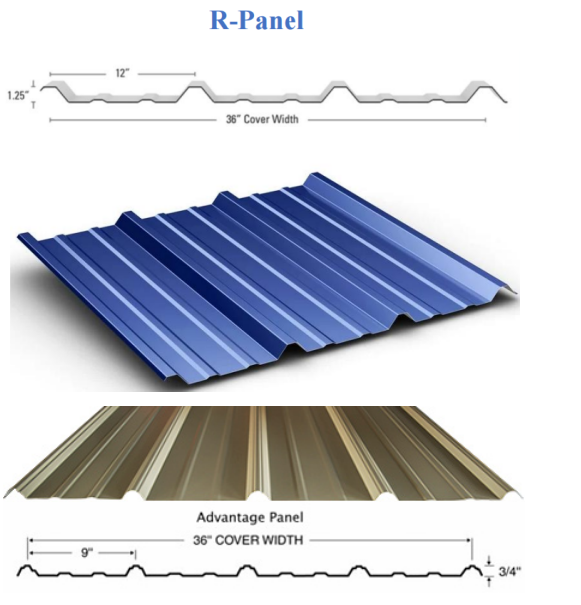

R panel machines are typically used to produce 4 Rib 36 "high panels, while AG panel machines are used to produce 5 Rib 36" high panels.The voltage specifications of these machines can be 220V/240V/380V, which can be single-phase or three-phase, designed according to customer needs.The R panel bending machine is suitable for steel coil thicknesses ranging from 0.30mm to 0.80mm.Some machines are fully automated, providing online support and free spare parts services, with a warranty period typically of 18 months.

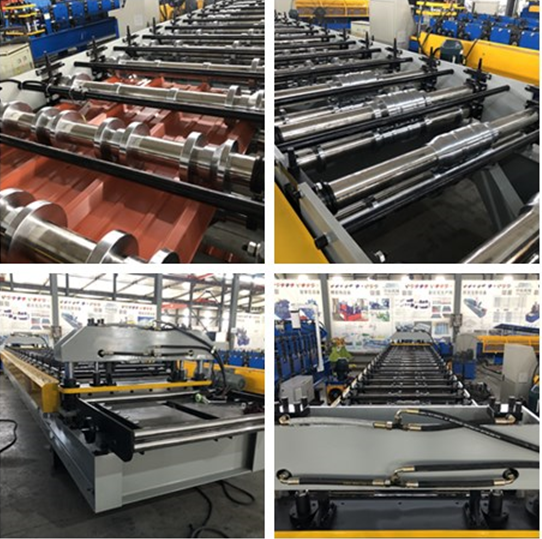

R panel and Ag panel machine Parameters:
| R panel Machine
Ag panel machine | Feeding device | One set guiding roller |
| Steel plate welded platform to carry the sheet and feed into roll forming system | ||
| Feeding width is adjustable with the handle wheels | ||
| Rolling shaft | Shaft material:45# STEEL | |
| Shaft diameter: 75 mm | ||
| Tempering treatment to prevent deformed and improve hardness | ||
| Roller | 45# steel | |
| Chromed treatment, improve the hardness and prevent abrasion, anti corrosion increase of service life | ||
| Rolling station | 19 rolling stations | |
| Work speed | 0-12 m/min {4 pieces per minute (3m per piece)} | |
| Machine structure | Steel plate welded structure | |
| Machine basic frame | 350# H steel welded | |
| Work power | 7.5 kw | |
| Rolling spacer | Anti rusty treatment | |
| Pull rod | Anti rusty treatment | |
| Transmission | By Chains with cover | |
| Noted: please fill the lube in case the chains getting dry |
Why Zhongtuo R panels and AG panels can benefit you?
- D2 roller material to handle SG550 level material well.
- Strong shaft for long time to use.

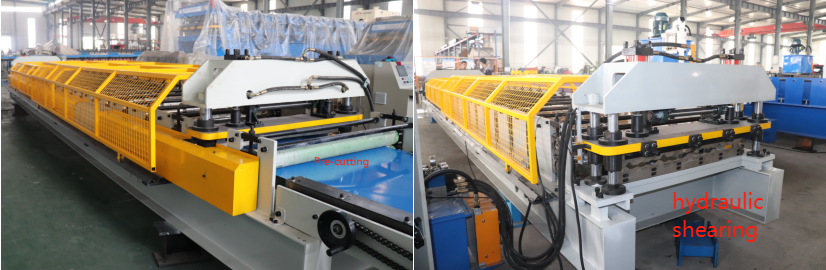

- With pre-cutting system, you can use as cut to length.
- 4 pillar sharing, long time to use.
- With protection cover, safe and beautiful.

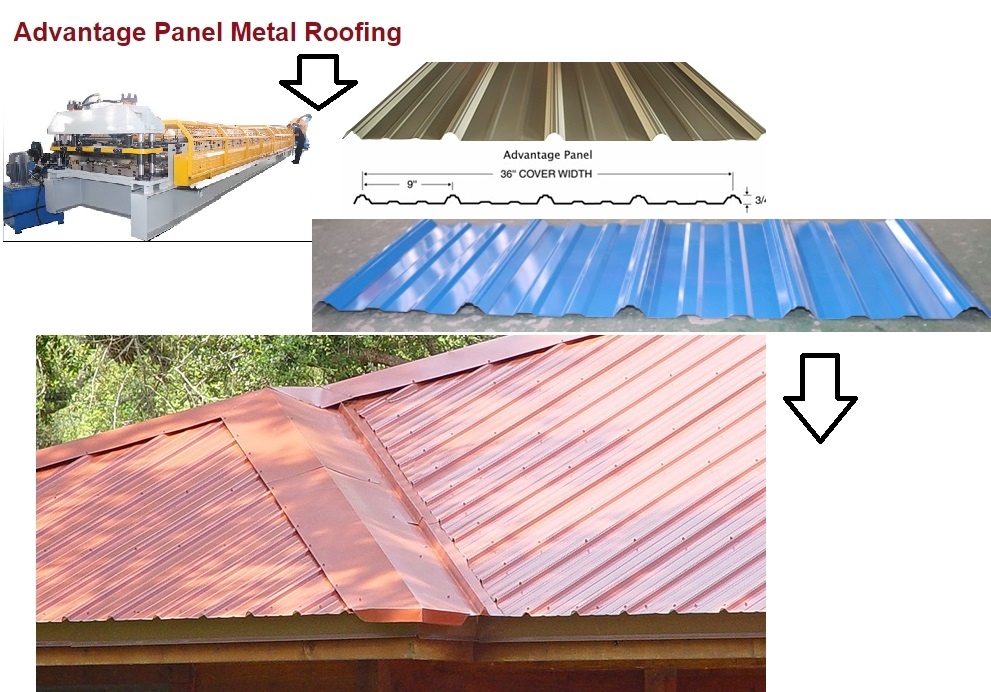

Application areas: R panels and AG panels are widely used in large factory buildings, warehouses, office buildings, villas, rooftops, refrigerated warehouses, air purification rooms, shops, newsstands, and temporary housing.Market trend: R panels and AG panels are very popular in the US market, especially in commercial and residential roof systems. These panels are favored for their durability, aesthetics, and ease of installation.Overall, R panel and AG panel machines have a wide market demand in the United States, with a variety of models and specifications to choose from.
